Brace-T
Stay Point - Box of 10
Cam Lock Gate Hinge
Post Grips
End Clip
Stay Block & Plug

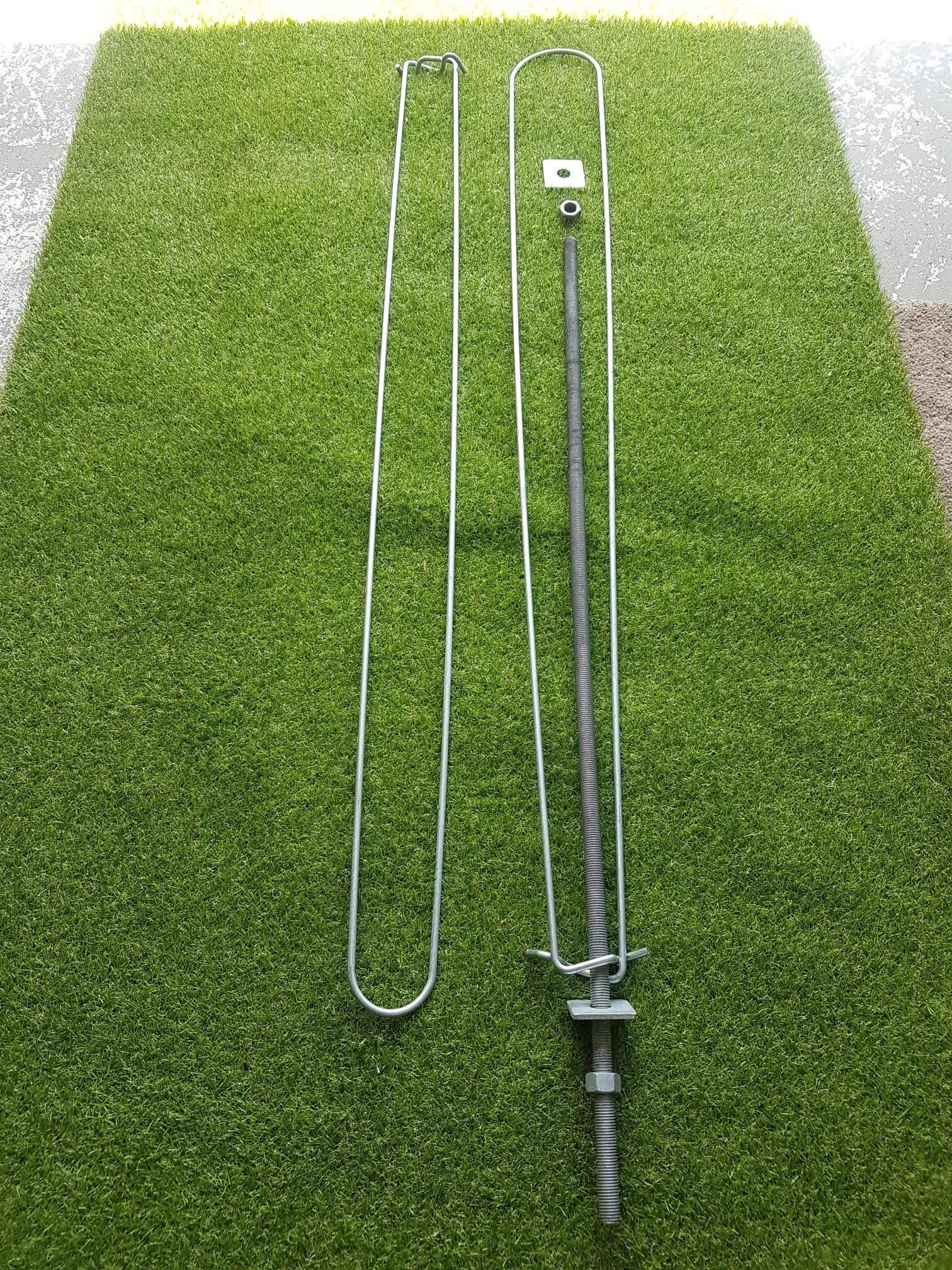

Brace - T

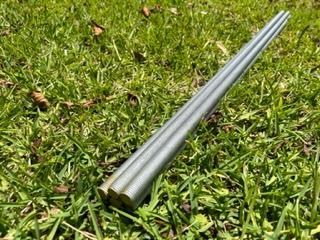

12mm & 16mm Thread Rod Coupling

Brace-T 12mm Thread - AU$32.00 Price Incl. GST

Brace-T 16mm Thread - AU$35.00 Price Incl. GST

The brace fits and positively locks to your post, with no slipping and no need to drill holes, increasing the strength and longevity of your end assembly.

Contact Us

Share

  • thread rod

    Slide title

    Write your caption here
    Button
  • brace-t

    Slide title

    Write your caption here
    Button

Secure No Drilling

The toughest of braces for the strongest of fences. Fast and simple to erect, makes bracing a fence easy. The heavy duty version with market leading 16mm thread.

Works With The System

Designed to complement the fenceline stayblock and stay plug. This product fits all products within the Fenceline ecosystem. With the largest surface area block on the market and a stayplug that results in even load distribution, the Fenceline system leads the market.

Complete Solution

With no drilling required, secure and high torque adjustment and compatability with the leading end assembly system, the Brace T takes the Fenceline system one more step in front of the competition.

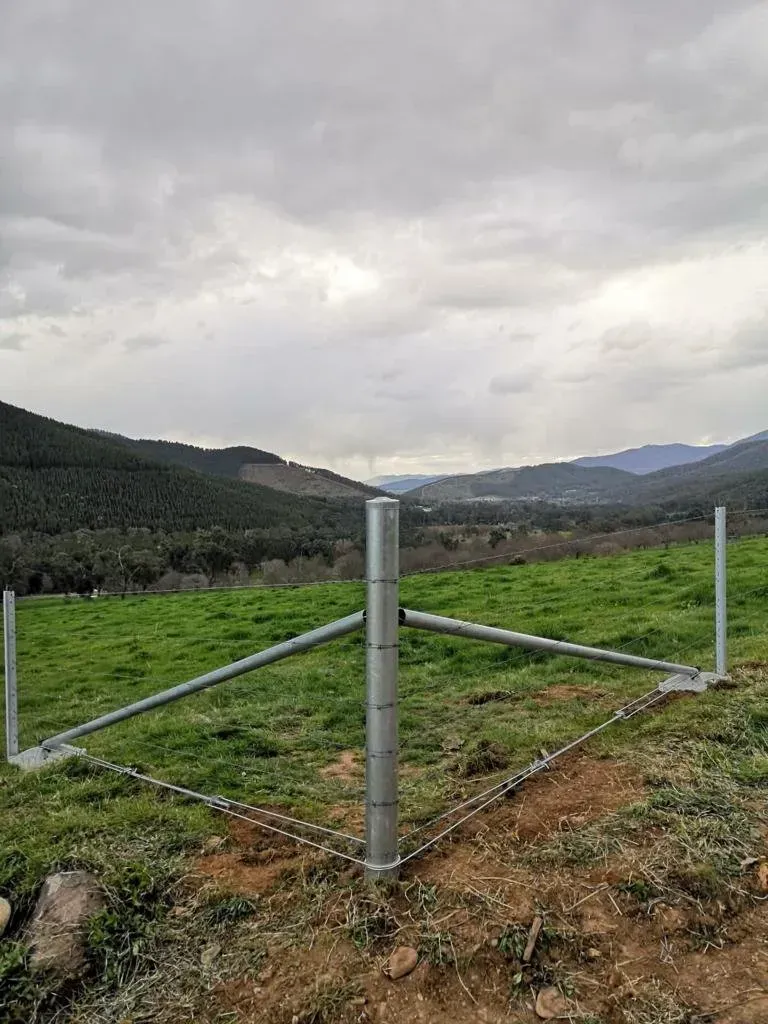

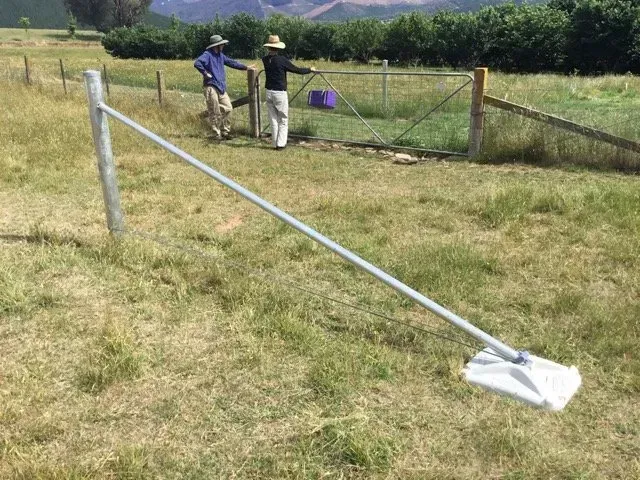

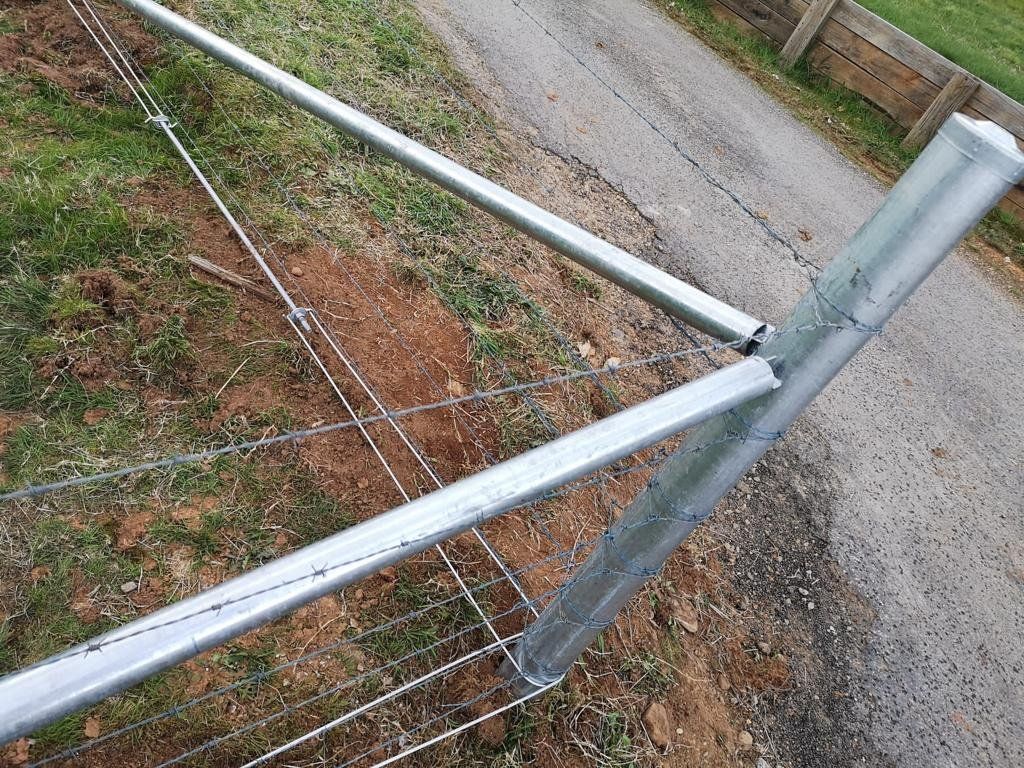

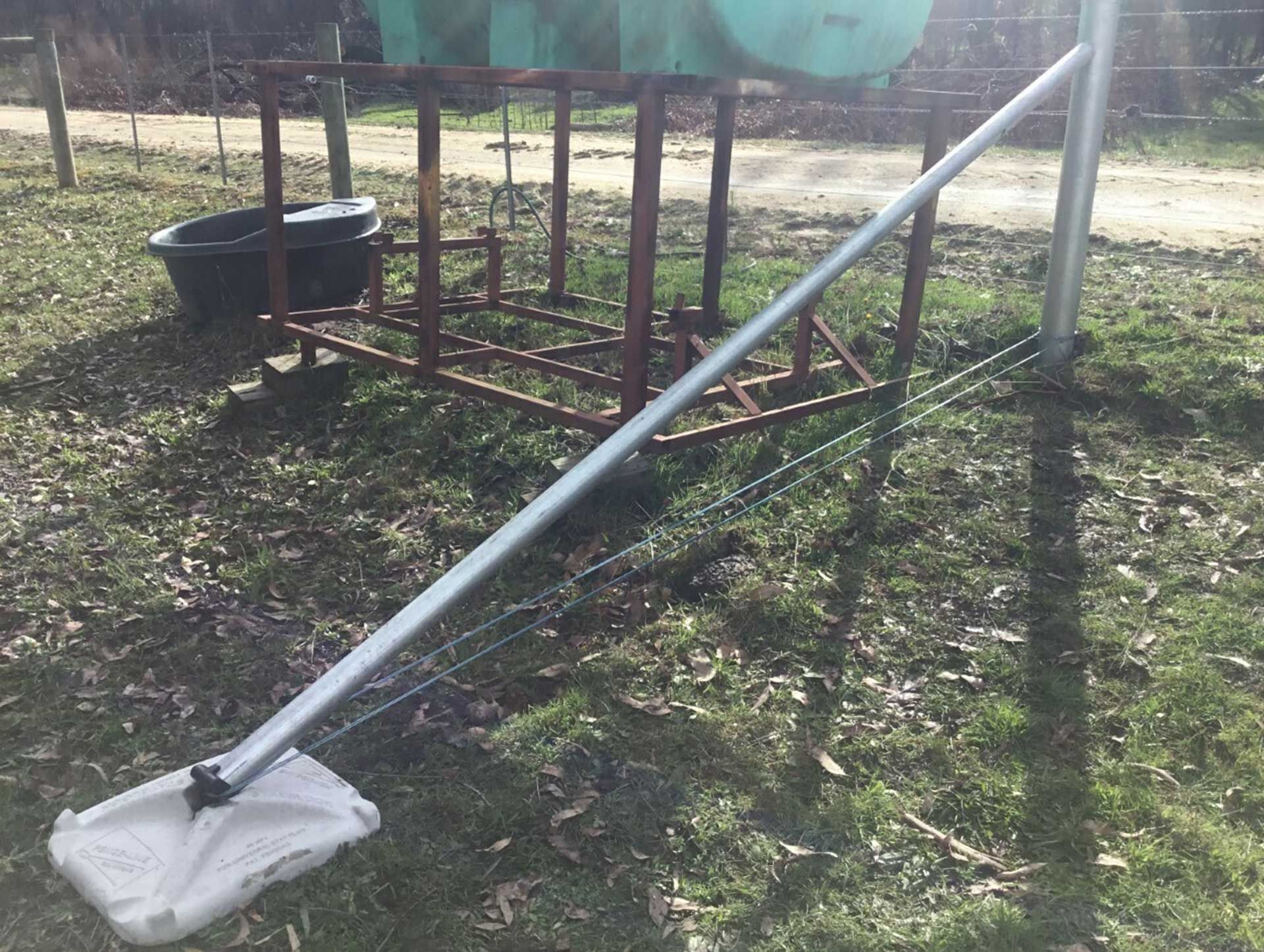

New StayBlock with StayPlug & Attachments

AU$38.50 per unit (pallets of 42 or 63 per order)

Price Incl. GST

*Freight not included. Discounts for bulk orders, please request a quote


Please contact for quote or to find your local stockist.

Contact Us
  • stay plug

    Slide title

    Write your caption here
    Button
  • stay plug

    Slide title

    Write your caption here
    Button
  • stay plug

    Slide title

    Write your caption here
    Button
  • stay plug

    Slide title

    Write your caption here
    Button
  • stay plug

    Slide title

    Write your caption here
    Button
  • stay plug

    Slide title

    Write your caption here
    Button
  • image slider

    Slide title

    Write your caption here
    Button
  • image slider

    Slide title

    Write your caption here
    Button
  • image slider

    Slide title

    Write your caption here
    Button
  • image slider

    Slide title

    Write your caption here
    Button
  • image slider

    Slide title

    Write your caption here
    Button

*This product can be used in conjunction with the 10 year end-assembly guarantee. Please view the specifications drawings here for more information or contact us today.

Share

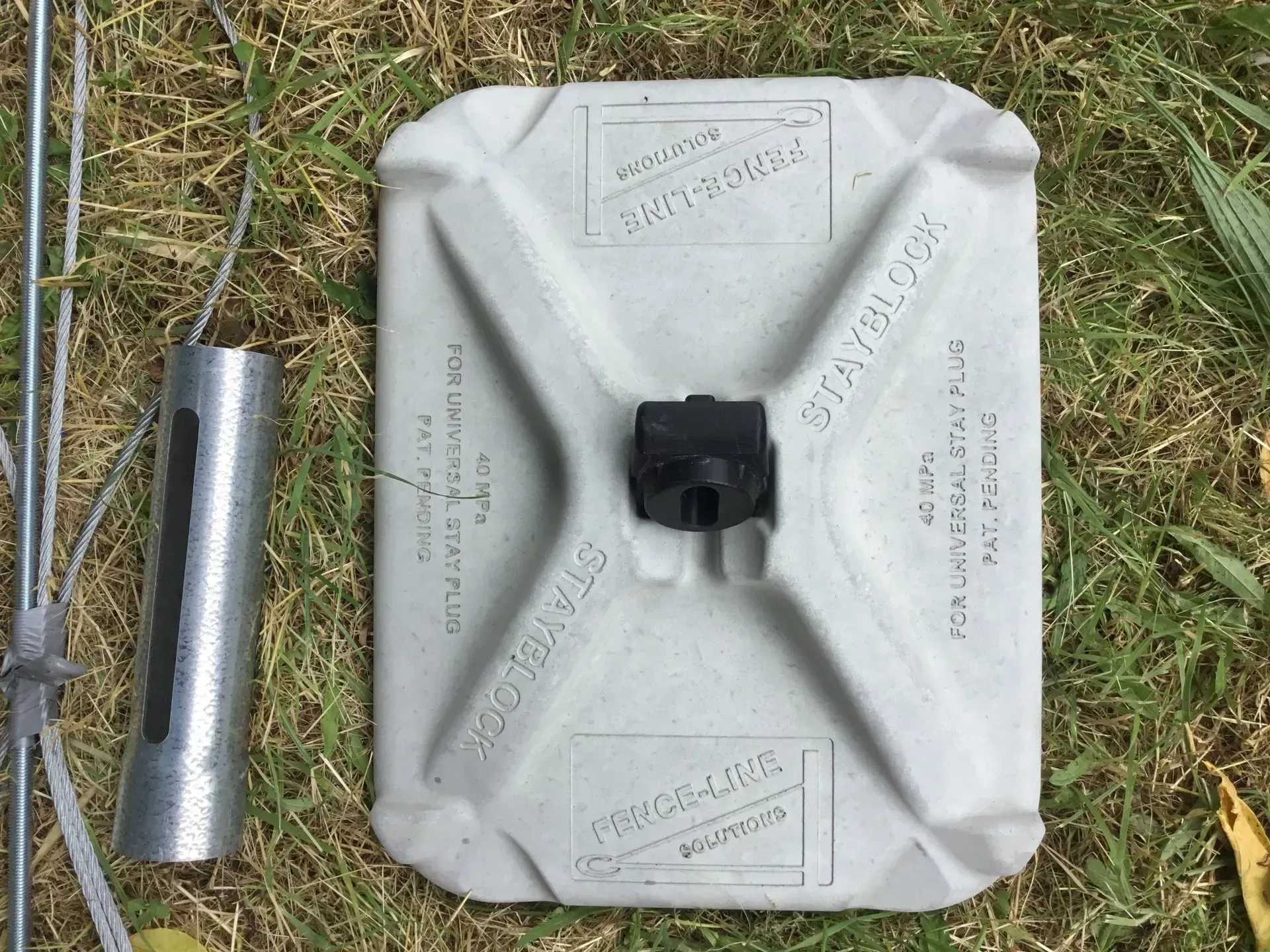

Specifications

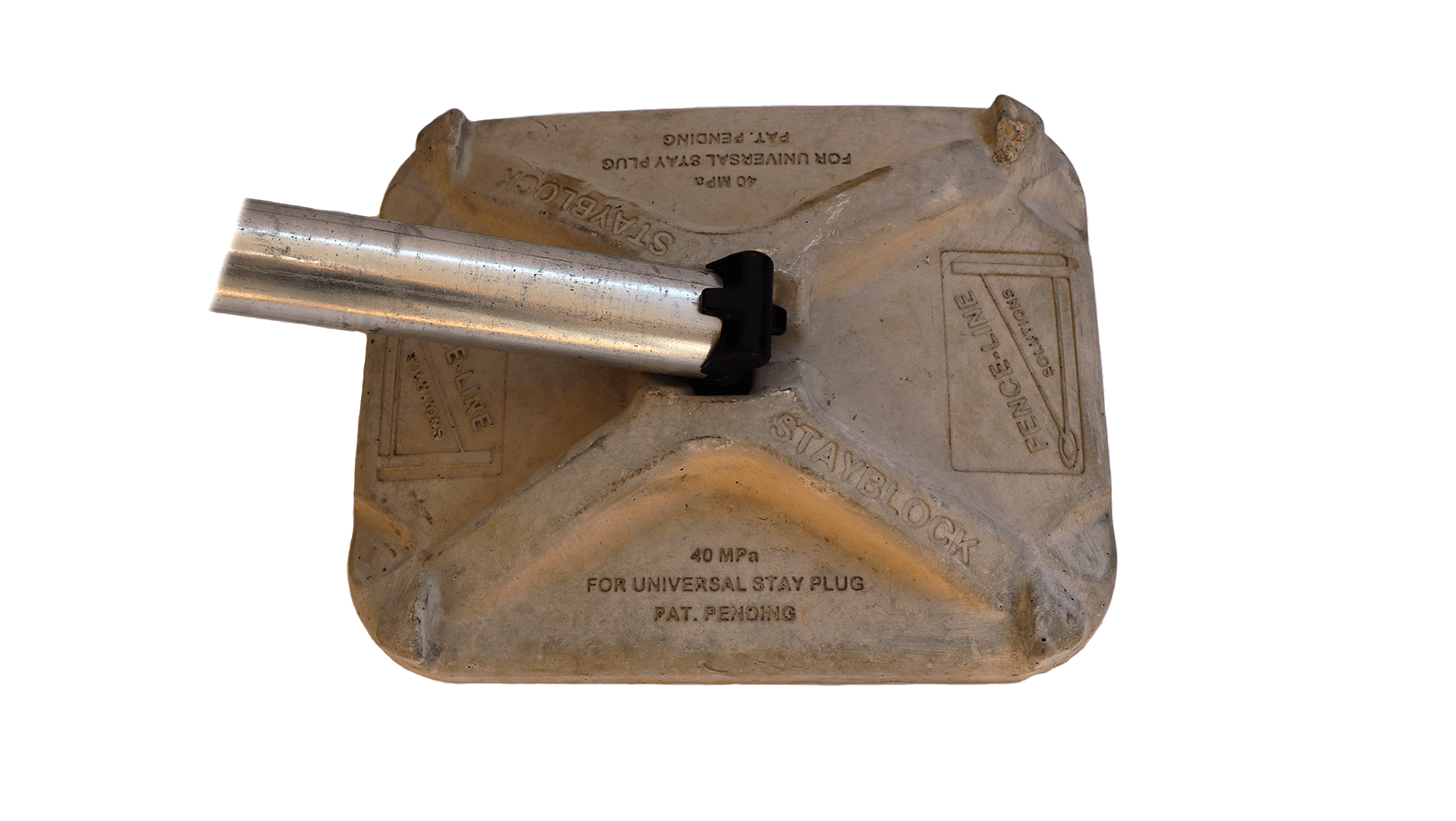

Stayblock

Material

Dimensions

Features

40 MPa Concrete

Size - n L450mm x B360mm x H90mm
Weight - 15kg
Pallet of 42 weight - 635kg
Pallet of 63 weight - 945kg

Large Concrete footing for maximum surface area. Easy to use, Fire-retardant
Balance load on the Stayblock
Has strength and longevity

Stayplug

Material

Dimensions

Features

Accessories Available Separately

UV Stabilized, Glass-filled Nylon

Rotating Knuckles 22 degrees

Fire-retardant self-draining, Knuckles rotates 180 degrees for thread

Brace-t 16mm Thread - $31.90 per unit*
Cable and Thread - $29.35 per unit*

*Freight not included. Discounts for bulk orders, please request a quote

Stay Point

  • StayBlock and StayPlug

    Slide title

    Write your caption here
    Button
  • StayBlock and StayPlug

    Slide title

    Write your caption here
    Button
  • StayBlock and StayPlug

    Slide title

    Write your caption here
    Button
  • stayplug

    Slide title

    Write your caption here
    Button
  • stayplug

    Slide title

    Write your caption here
    Button
  • stayplug

    Slide title

    Write your caption here
    Button

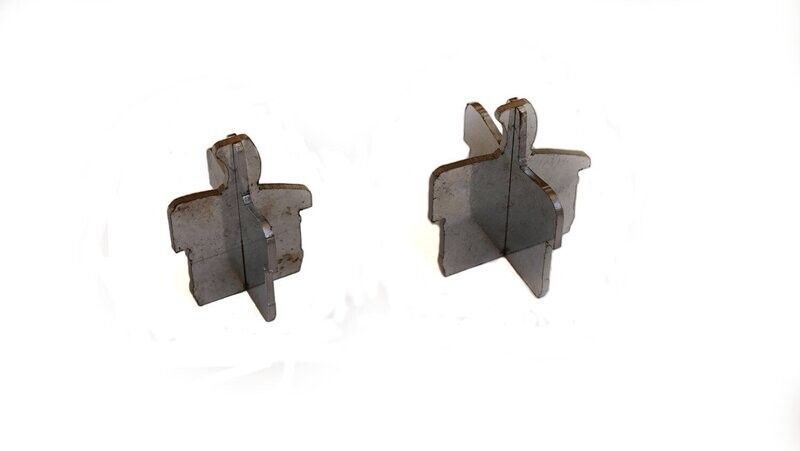

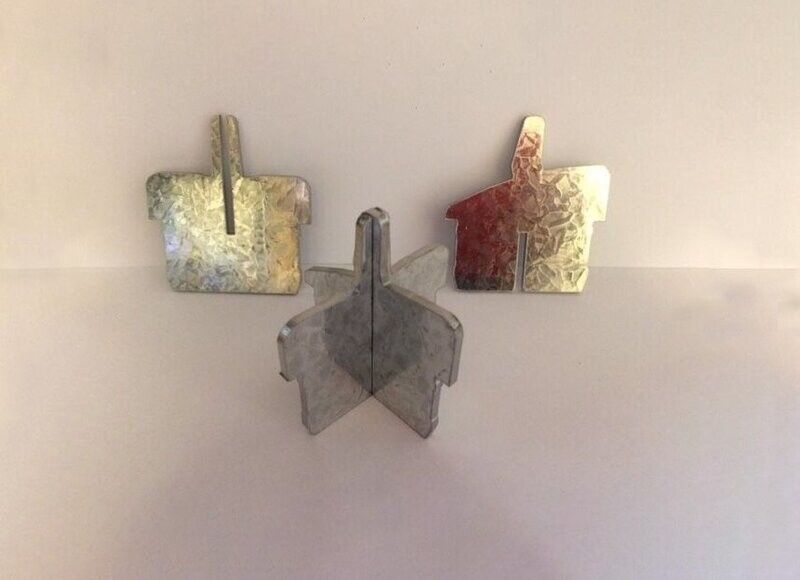

Stay Point - Box of 10

AU$60.00

Price incl. GST

Pieces

  • Box of 10 ($6.00 each for one item)

Size

  • 43mm
  • 56mm
Add to Bag
  • stay point

    Slide title

    Write your caption here
    Button

*This product can be used in conjunction with the 10 year end-assembly guarantee.

Share

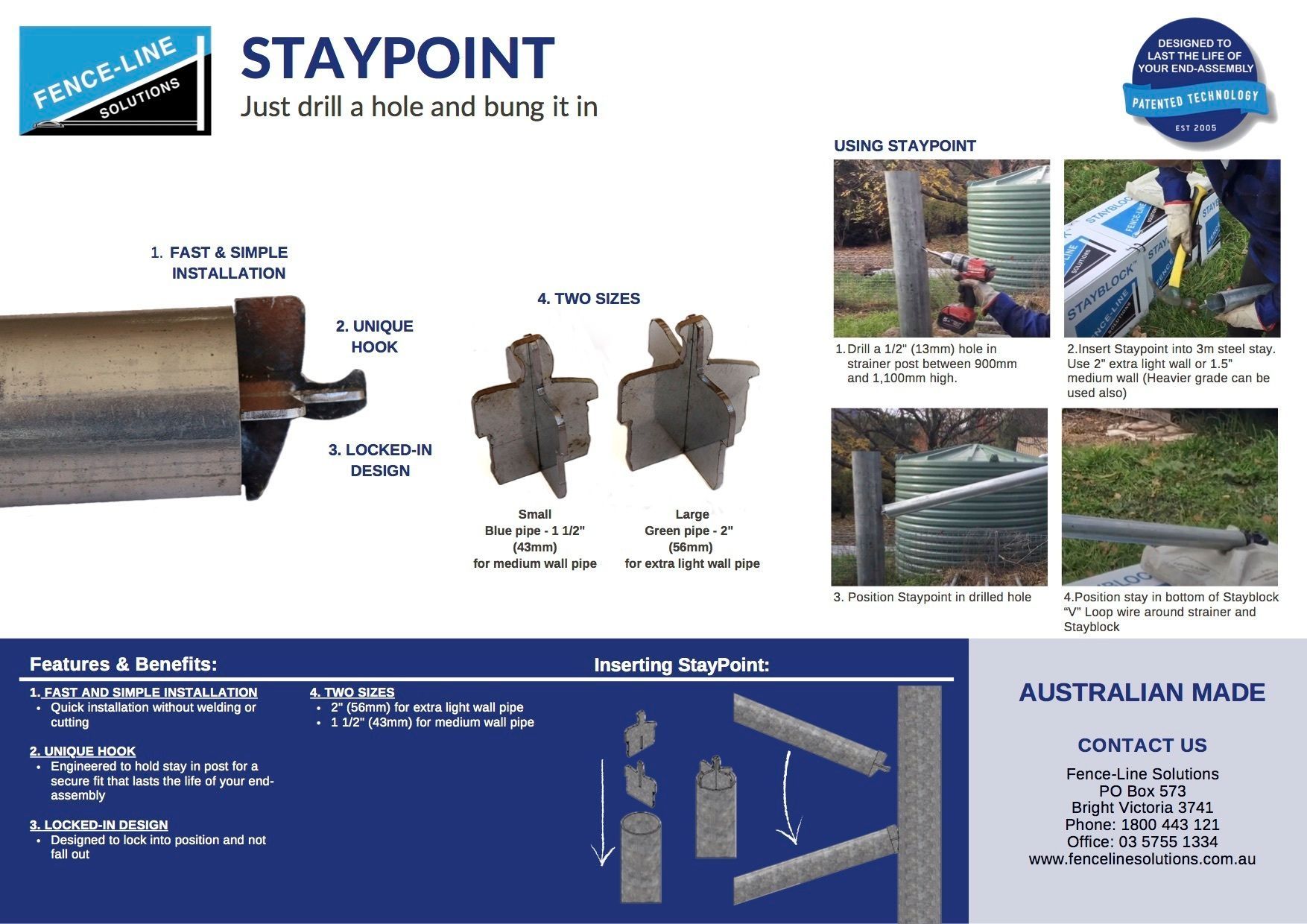

Specifications

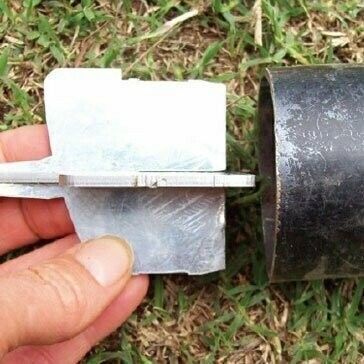

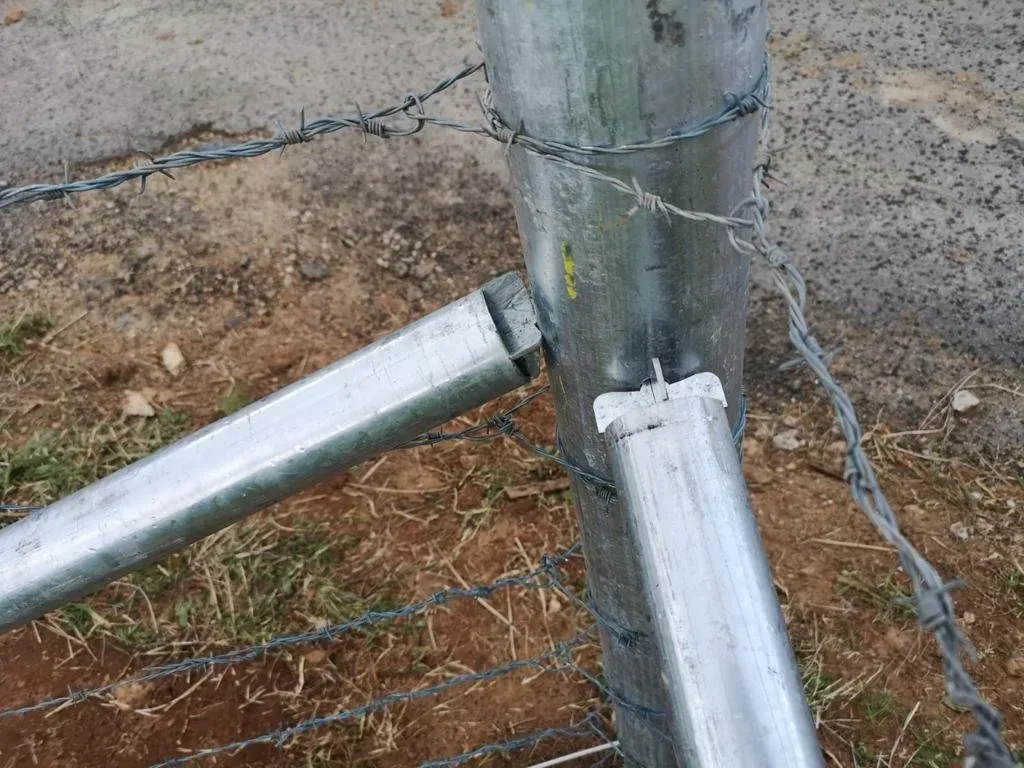

Staypoint

Using Staypoint

Material - 3mm Galvanized Steel Plate
Size - 2” (56mm) for Extra Light Wall Pipe, 1 1/2” (43mm) for Med Wall Pipe, Heavier Wall can be Used
Quantity - 10 / pack
Weight - 130g
Strainer Post Hole - 1/2” or 12mm

Use a 1/2 inch flat gal washer for timbers post only
2" extra pipe or 1 1/2" medium well
1/2" Hole

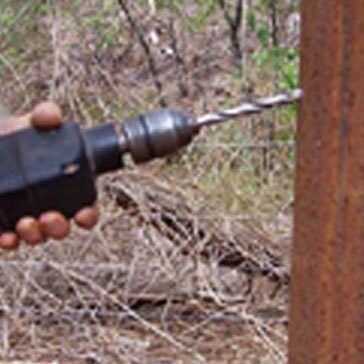

Drill a 13mm hole in strainer post with a 70˚ angle

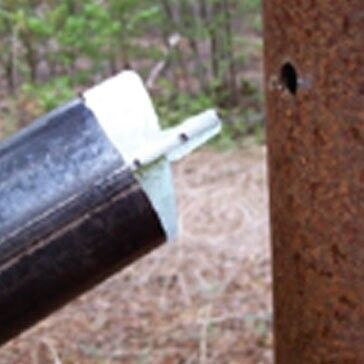

Insert Staypoint into 3m steel stay. Use 2” extra light wall or 1.5” medium wall (Heavier grade can be used also)
Position Staypoint in drilled hole

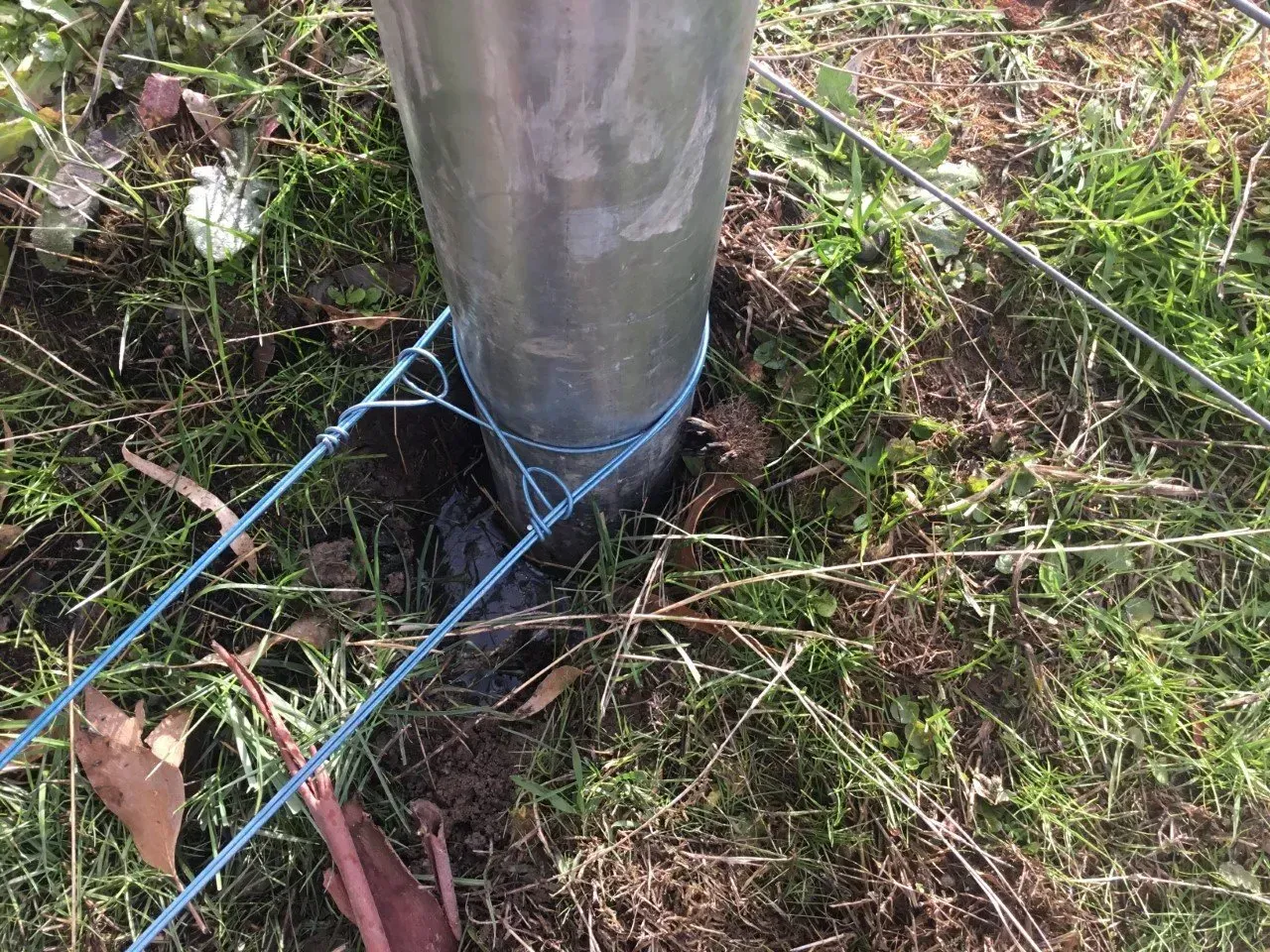

Position stay in bottom of Stayblock “V” Loop wire around strainer and Stayblock

  • StayBlock and StayPlug

    Slide title

    Write your caption here
    Button
  • cam lock

    Slide title

    Write your caption here
    Button

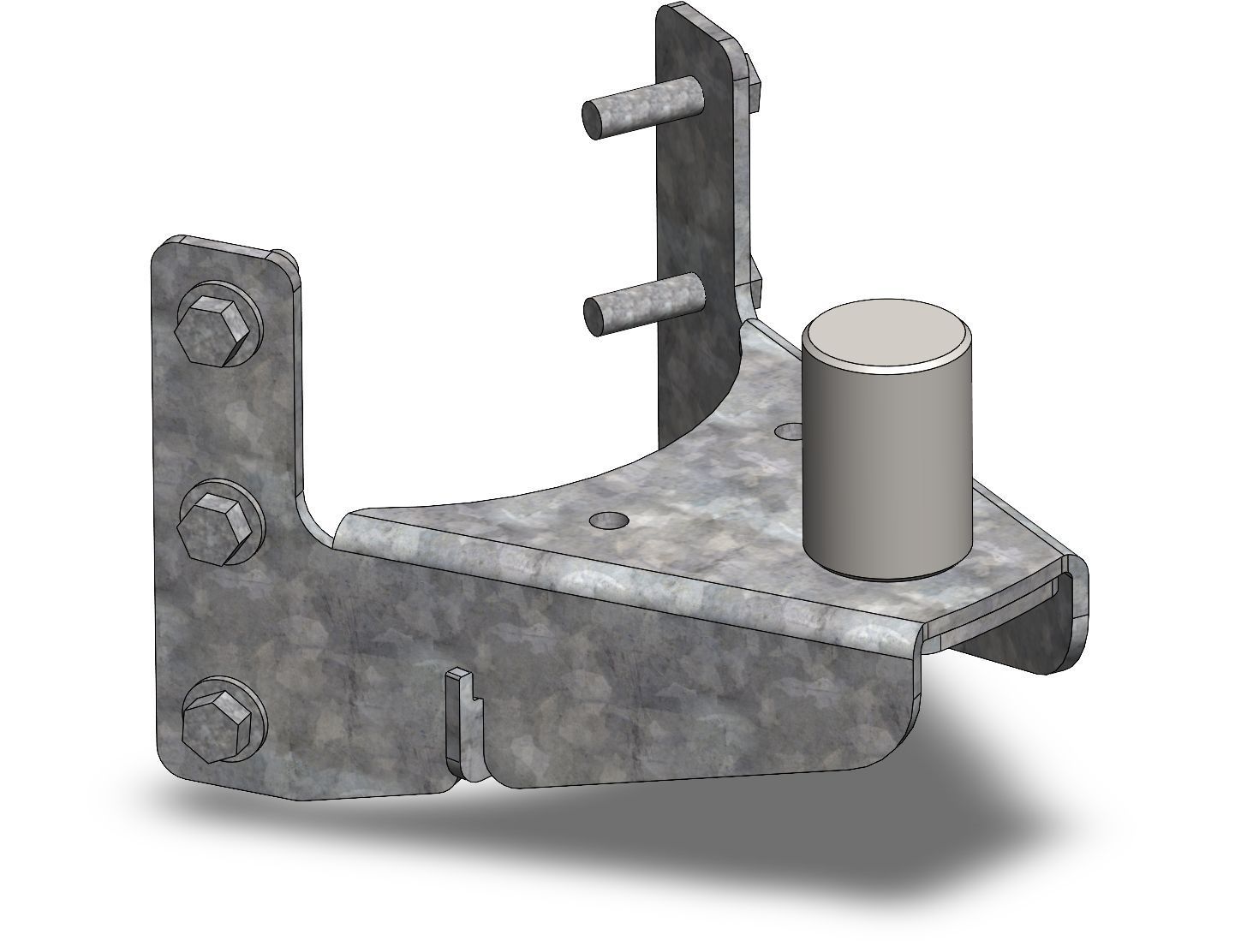

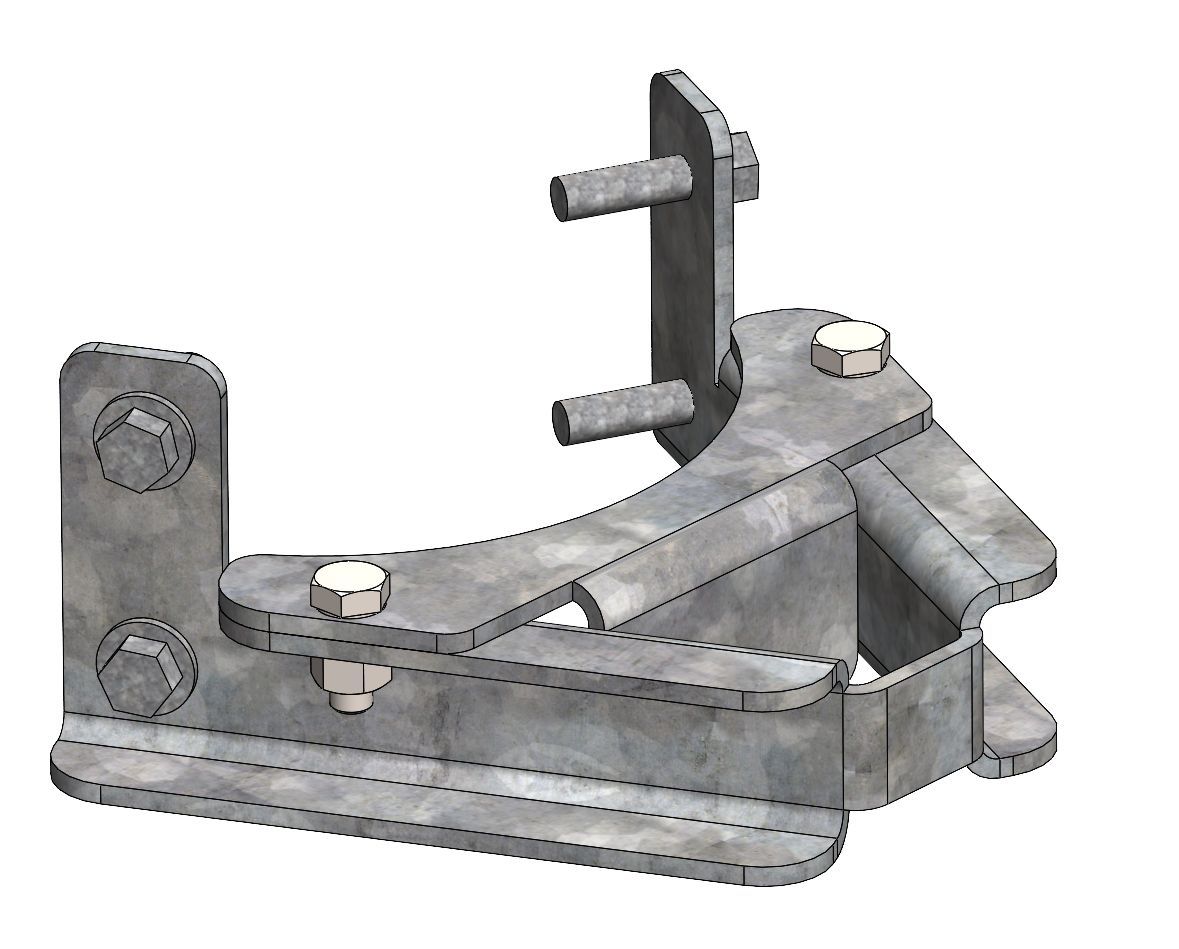

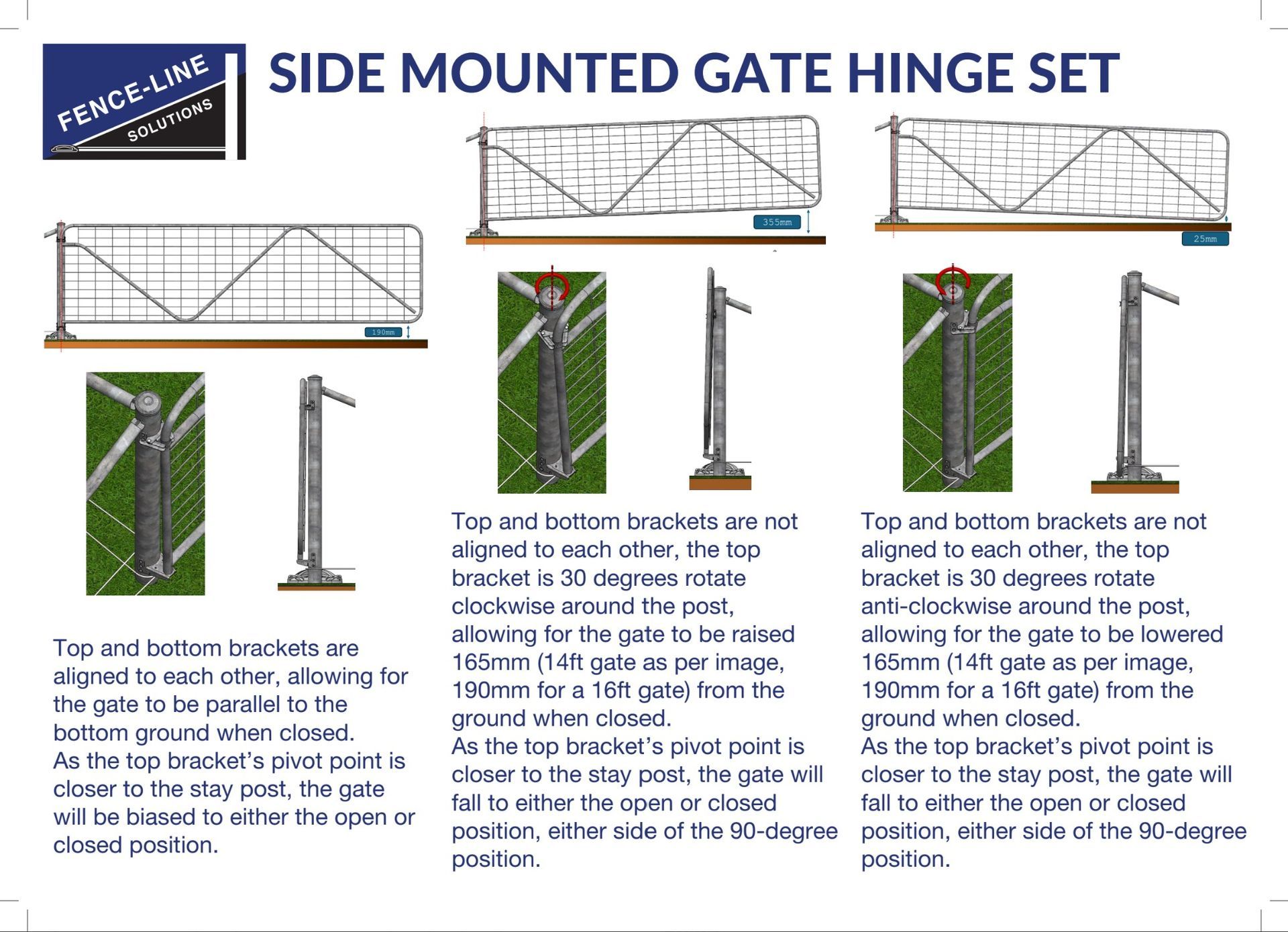

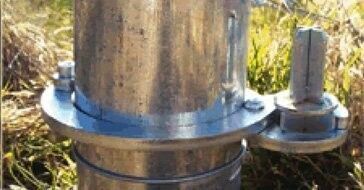

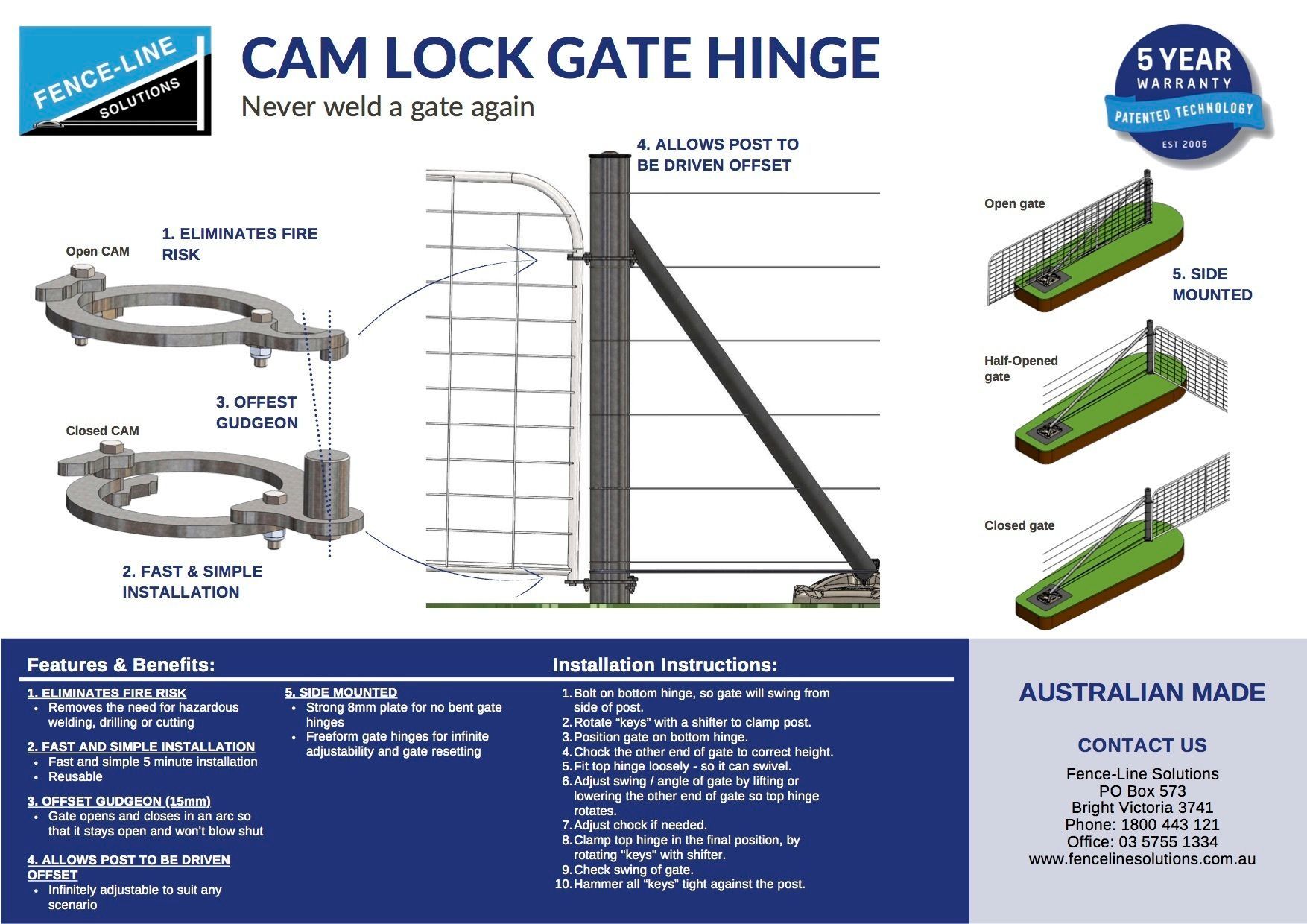

Cam Lock Gate Hinge

AU$48.00

Price incl. GST

Model - Hinge

  • GH 100
  • GH 80
Add to Bag
  • stay point

    Slide title

    Write your caption here
    Button

Share

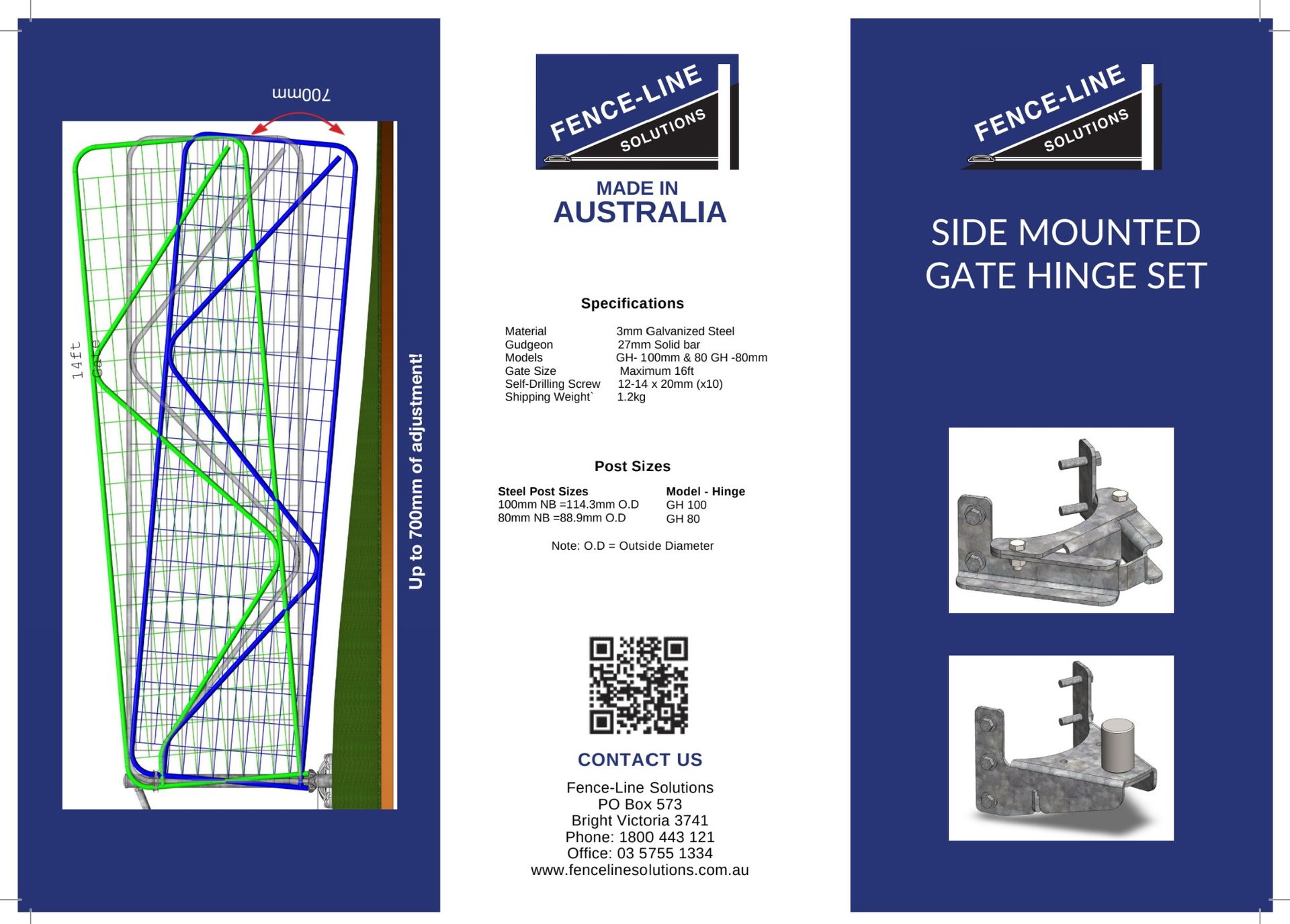

Steel Post Sizes

100 mm NB = 114.3 mm O.D

80 mm NB = 88.9 mm O.D

Model - Hinge

GH 100

GH 80

Note: O.D = Outside Diameter

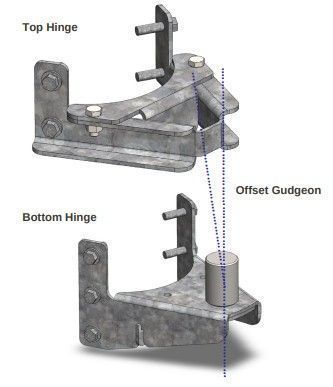

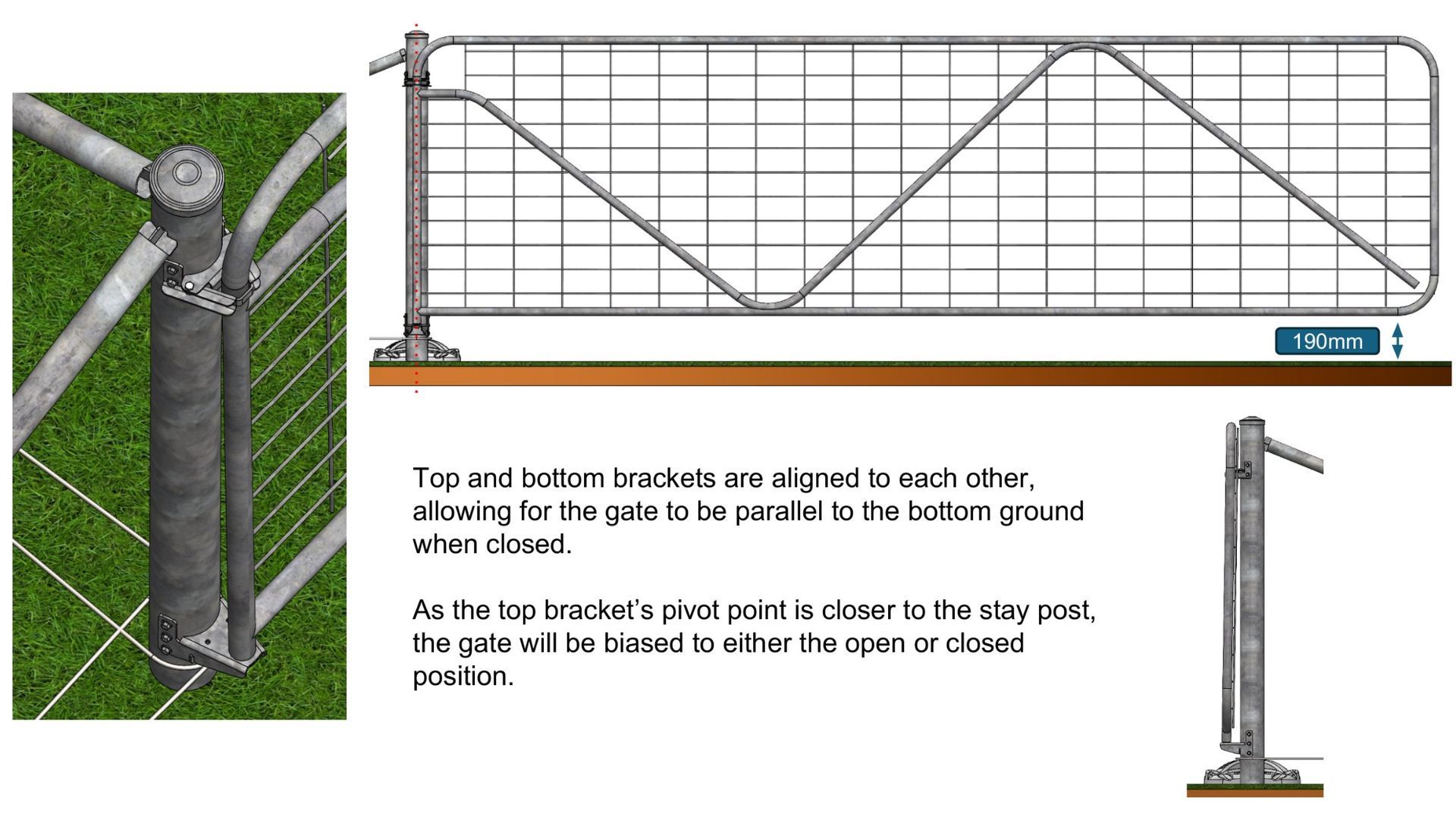

Features Installation Instructions
Easy to install Bolt on bottom hinge, so gate will swing from side of post.
Adjustable Rotate “keys” with a shifter to clamp post.
Reusable Position gate on bottom hinge.
Gate opens against fence Chock the other end of gate to correct height.
No welding or cutting required Fit top hinge loosely - so it can swivel.

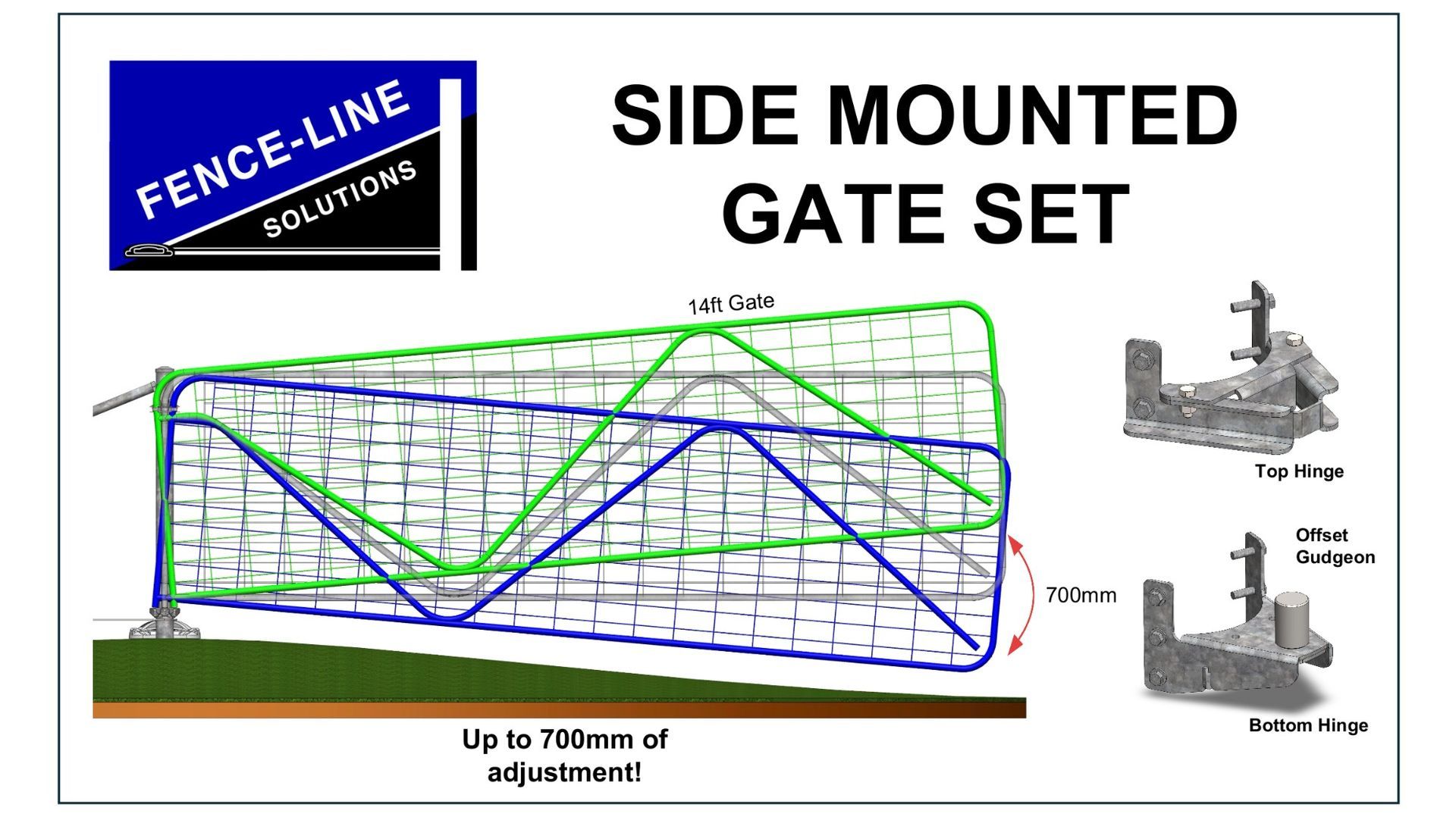

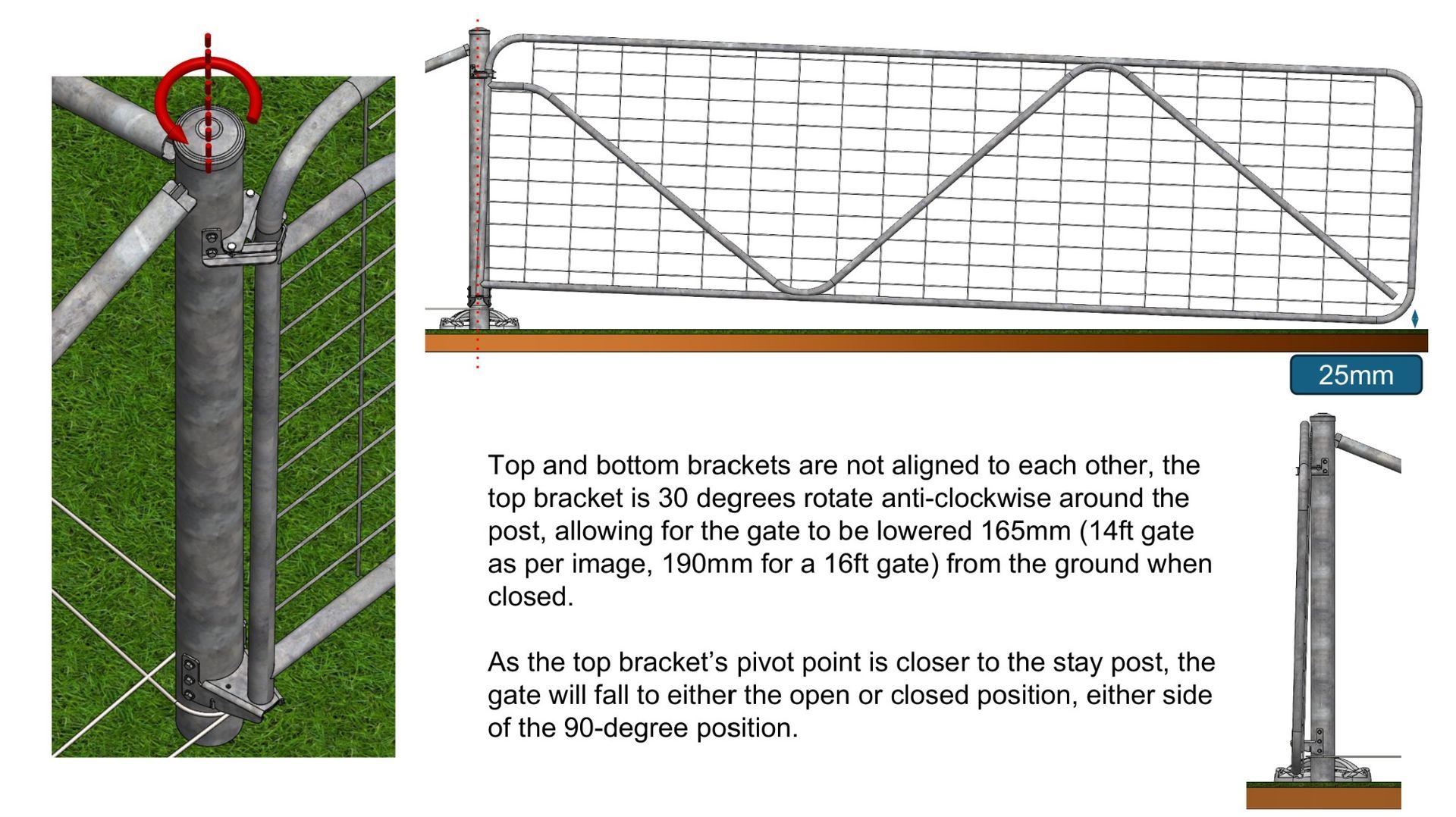

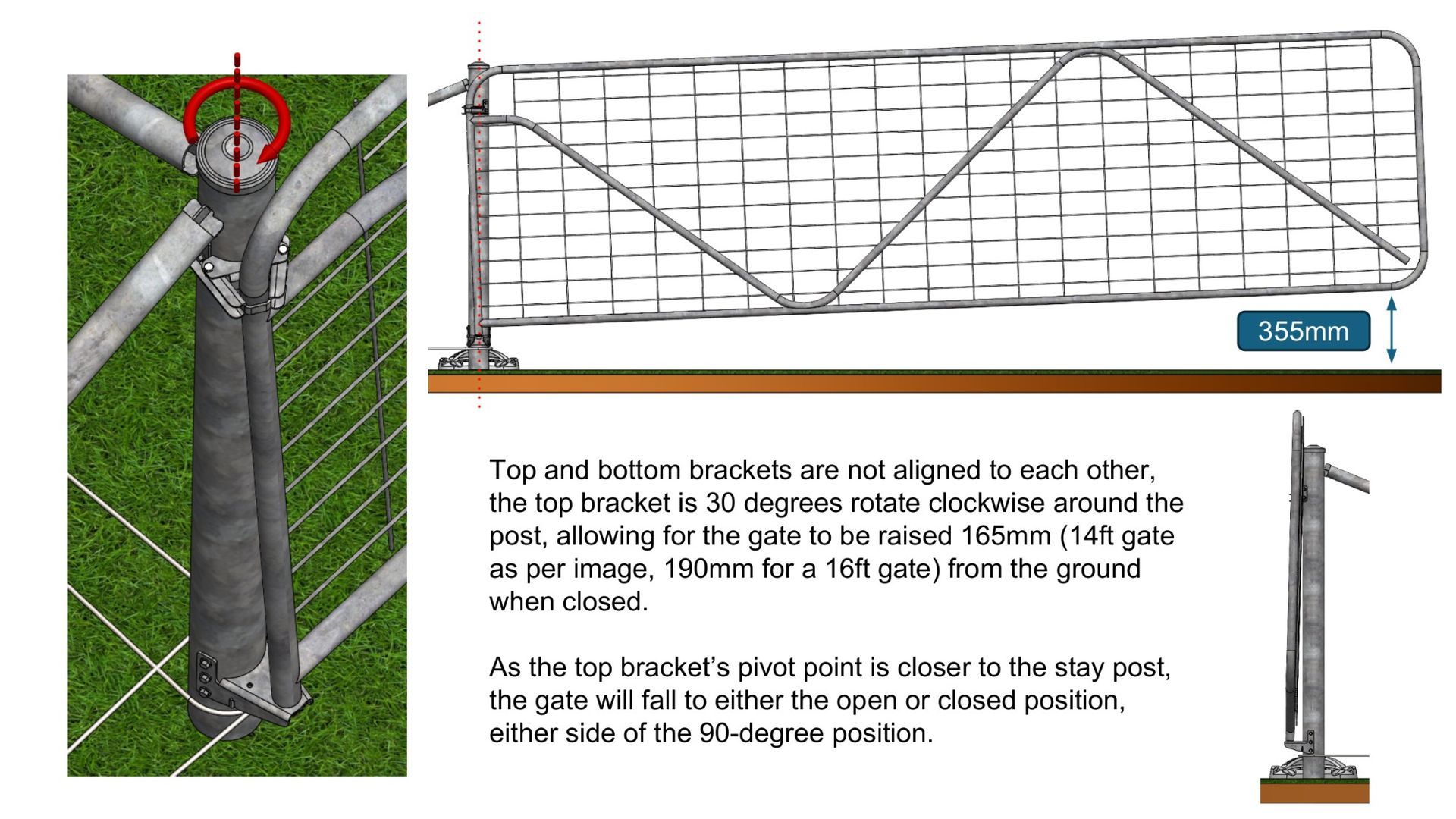

Adjust swing / angle of gate by lifting or lowering the other end of gate so this rotates top hinge.
Adjust chock if needed.
Clamp top hinge in the final position, by rotating "keys" with shifter.
Check swing of gate.
Hammer all “keys” tight against the post.
  • StayBlock and StayPlug

    Slide title

    Write your caption here
    Button
  • StayBlock and StayPlug

    Slide title

    Write your caption here
    Button
  • StayBlock and StayPlug

    Slide title

    Write your caption here
    Button
  • post grips

    Slide title

    Write your caption here
    Button

Post Grips - Box of 10

AU$50.00

Price incl. GST

Pieces

  • Box of 10 ($5.00 each for one item)

Size

  • 150mm
Add to Bag

*This product can be used in conjunction with the 10 year end-assembly guarantee.

Share

Description

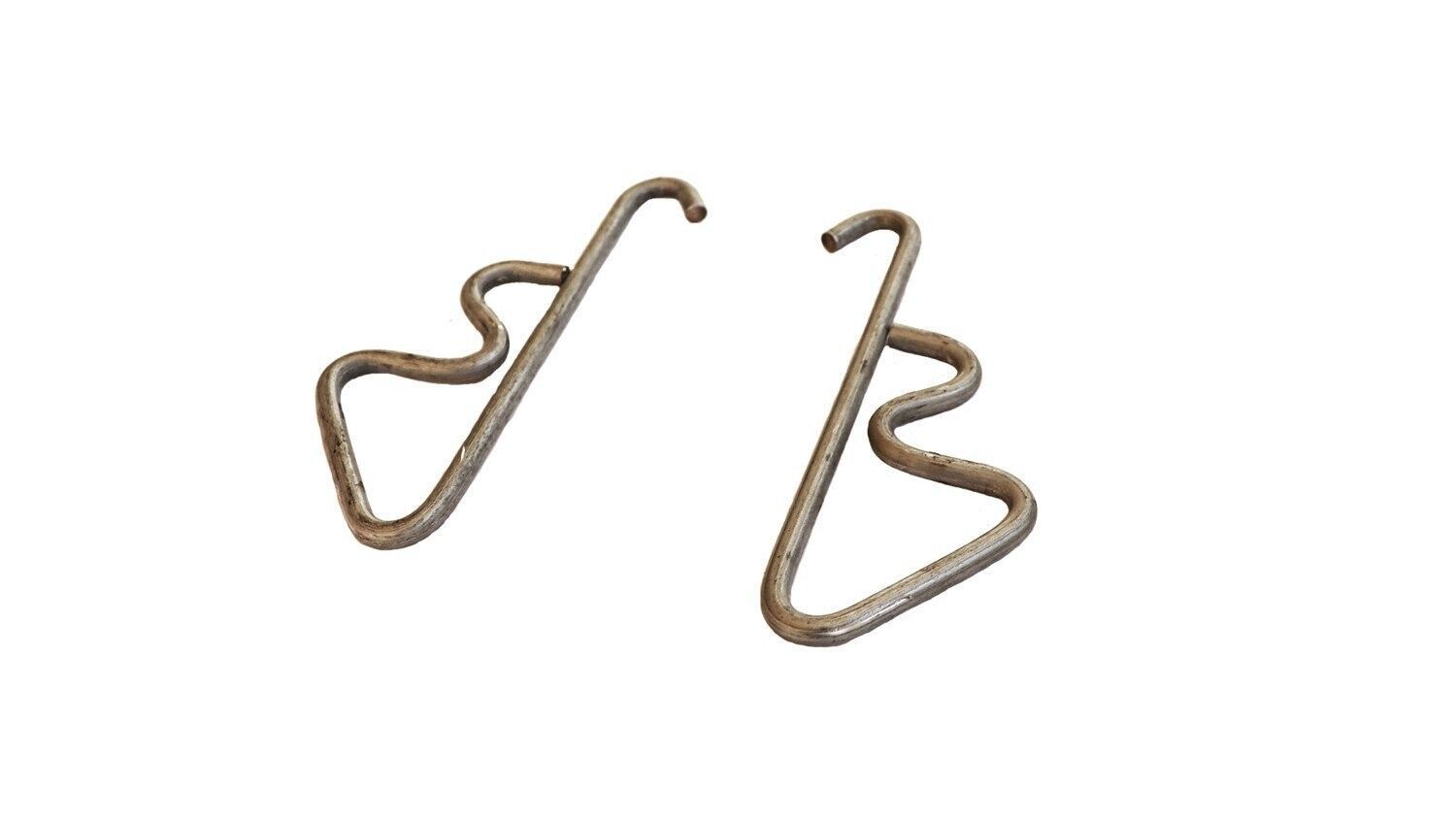

Post Grips clip onto the bottom of your steel strainer posts prior to driving into the ground.

We recommend using two per post, on opposite sides, this stabilises the post and increases by a factor of 3 the resistance to jacking.

Specification

  • Material - 6.3mm Galvanised Spring Steel
  • Size - will fit onto steel strainer posts.
  • Quantity - 10 / pack
  • Weight - 800g

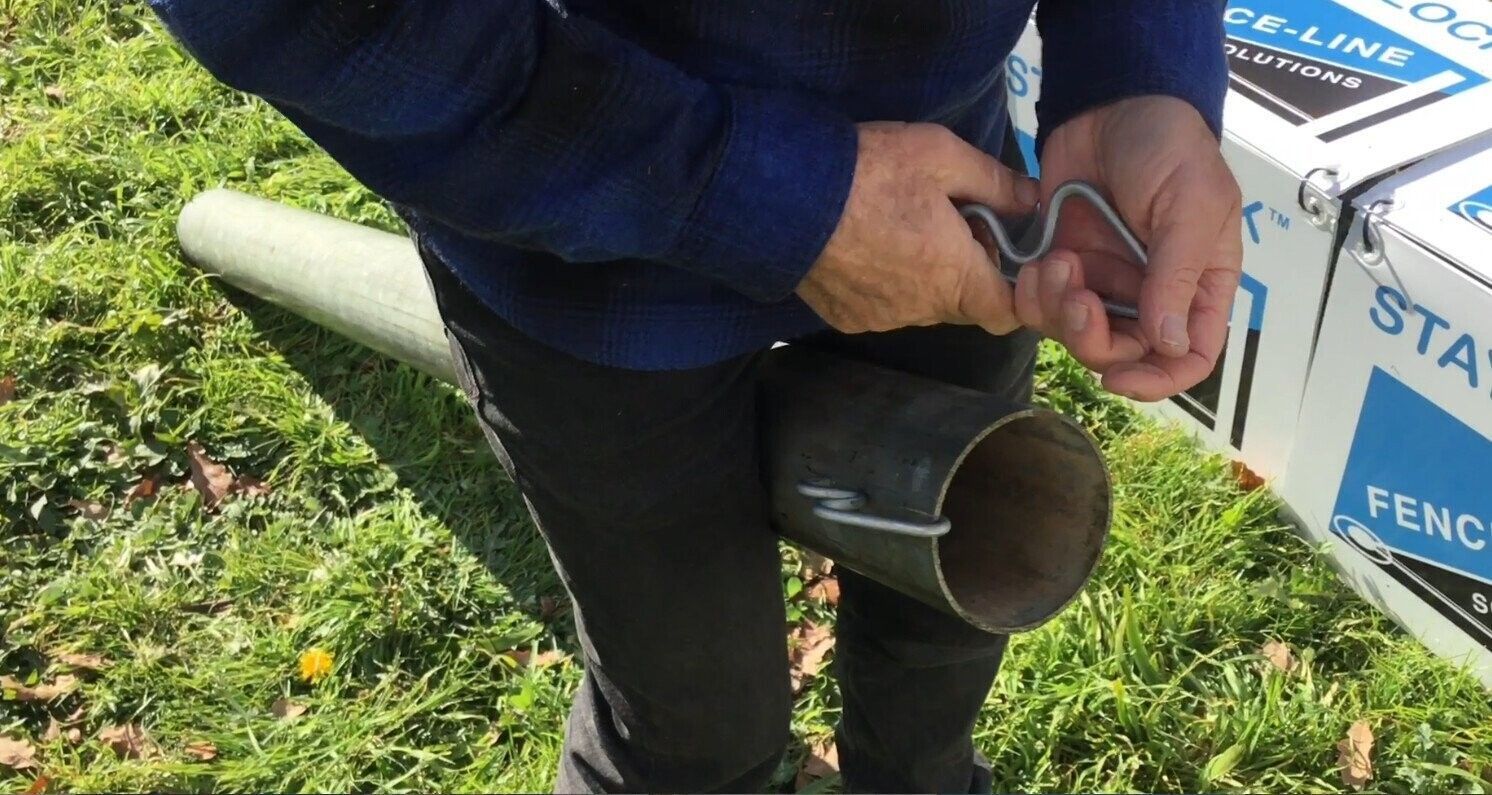

Using Post Grip

Attach 2 x Post Grips on opposite sides of steel strainer post, the straight side with hook on the inside of the post, leaving the S shaped on the outside of post. Then drive your post into the soil with the Post Grips attached to the pipe, this will stabilise post to resist jacking.

The Retail Price is $50 per box of 10.

  • grip

    Slide title

    Write your caption here
    Button
  • StayBlock and StayPlug

    Slide title

    Write your caption here
    Button
  • endclip

    Slide title

    Write your caption here
    Button
  • StayBlock and StayPlug

    Slide title

    Write your caption here
    Button
  • StayBlock and StayPlug

    Slide title

    Write your caption here
    Button
  • endclip

    Slide title

    Write your caption here
    Button
  • grip

    Slide title

    Write your caption here
    Button

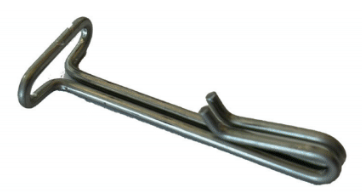

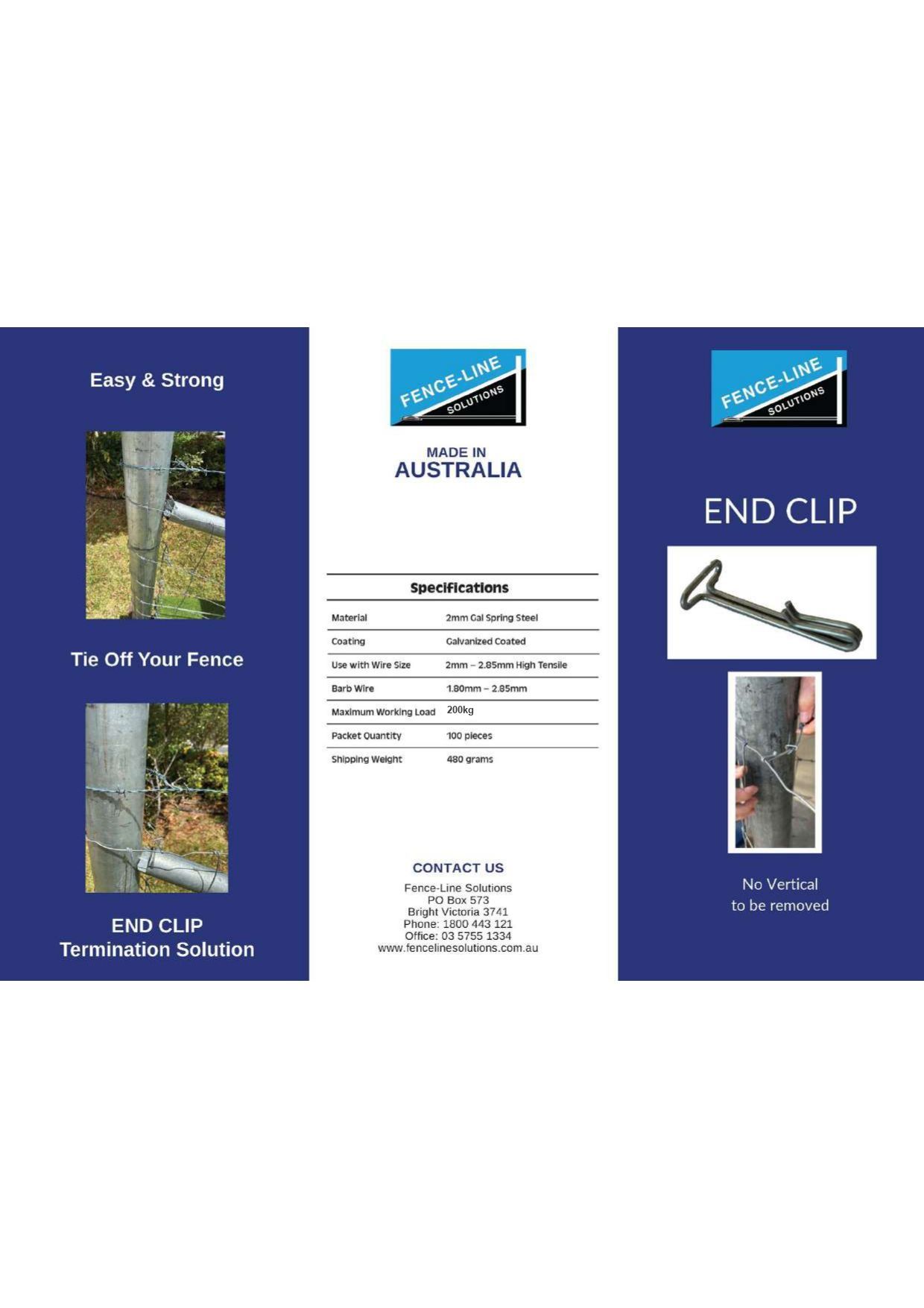

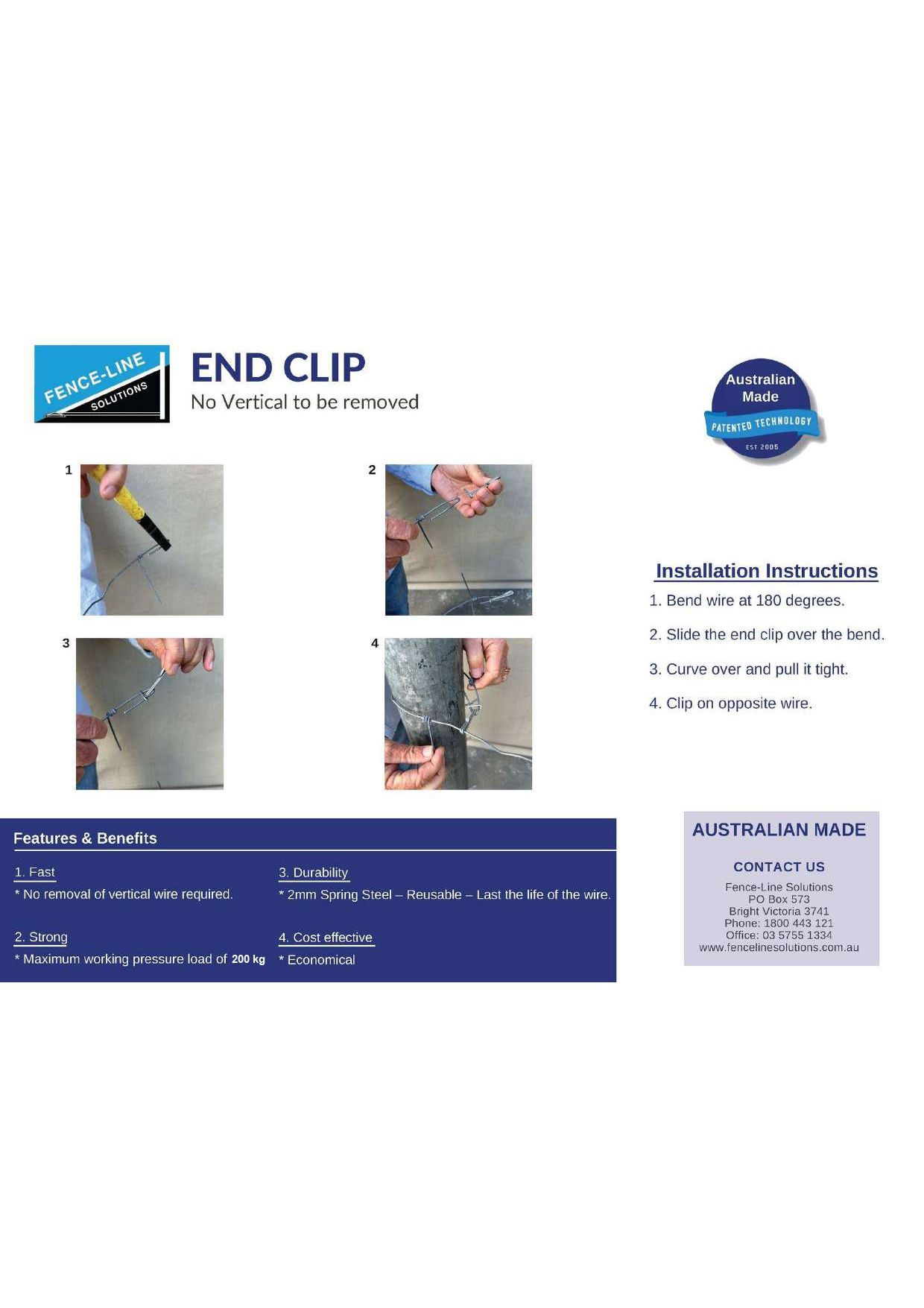

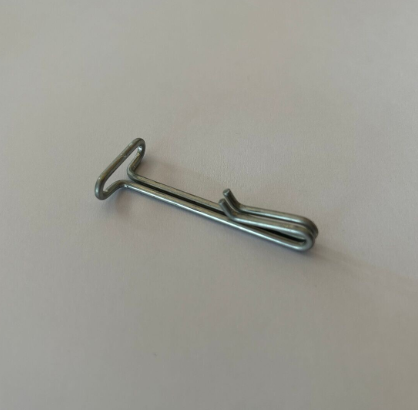

End Clip

AU$60.00 per pack of 100

Price Incl. GST

  • Maximum load Capacity 200kg
  • Fast and Strong
  • For mesh wire
Add to Bag
brochure

City skyline

Photo By: John Doe
Button
brochure
View more

*This product can be used in conjunction with the 10 year end-assembly guarantee.

Share

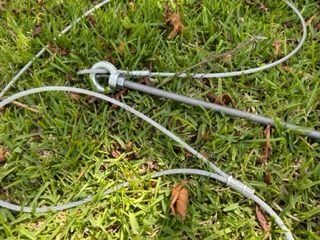

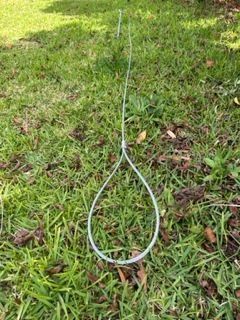

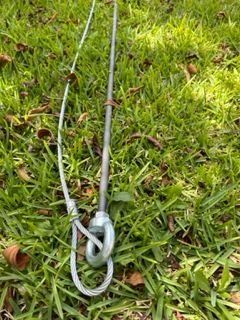

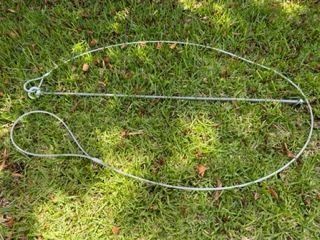

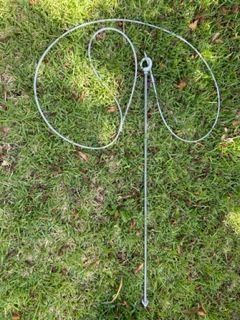

StayBlock Cable & Thread

AU$34.00

Price Incl. GST

3m Stay Pipe Length

850mm -1200mm Stay Height

Form Loop through 1 meter Gal thread M12 Eye Nut

Ferrule measured from tip of wire

Contact Us

Share

  • cable and thread 1

    Slide title

    Write your caption here
    Button
  • cable and thread 2

    Slide title

    Write your caption here
    Button
  • cable and thread 3

    Slide title

    Write your caption here
    Button
  • cable and thread 4

    Slide title

    Write your caption here
    Button
  • cable and thread 5

    Slide title

    Write your caption here
    Button

StayBlock Retail Stockists

Call Us For Your Local Supplier. Phone 03 5755 1334
